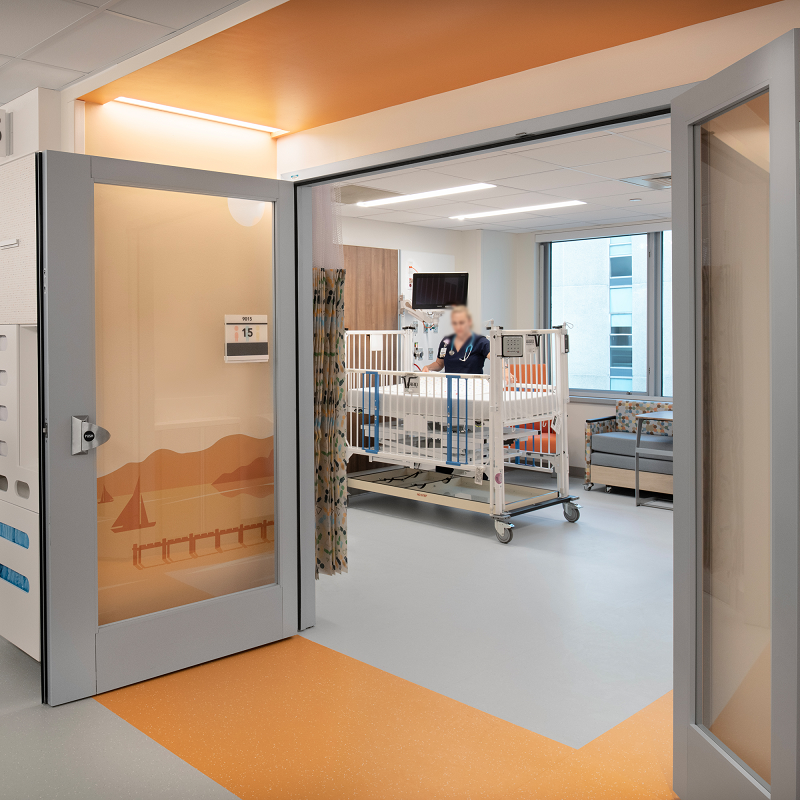

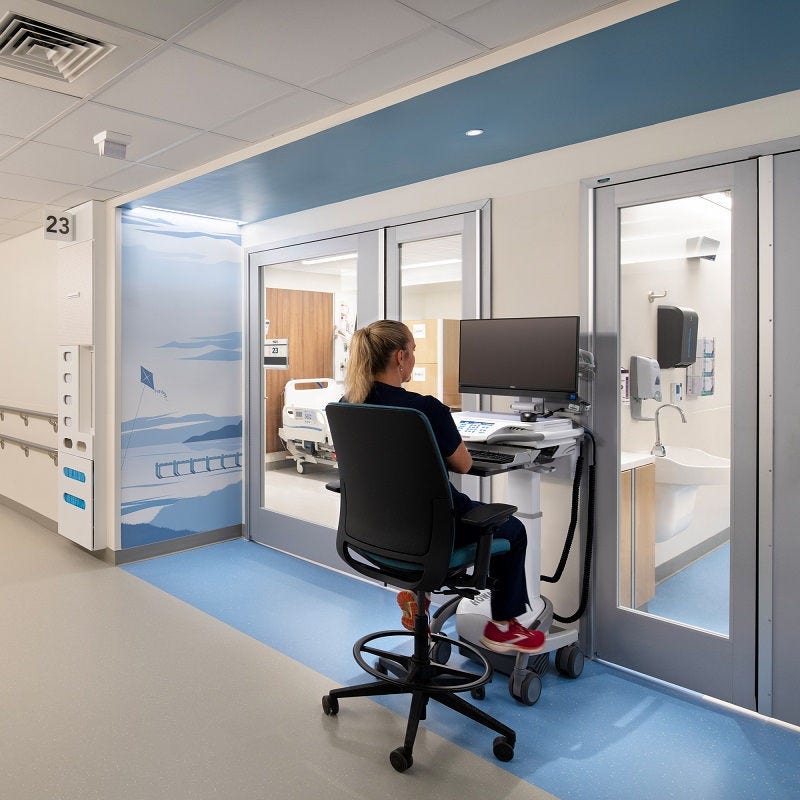

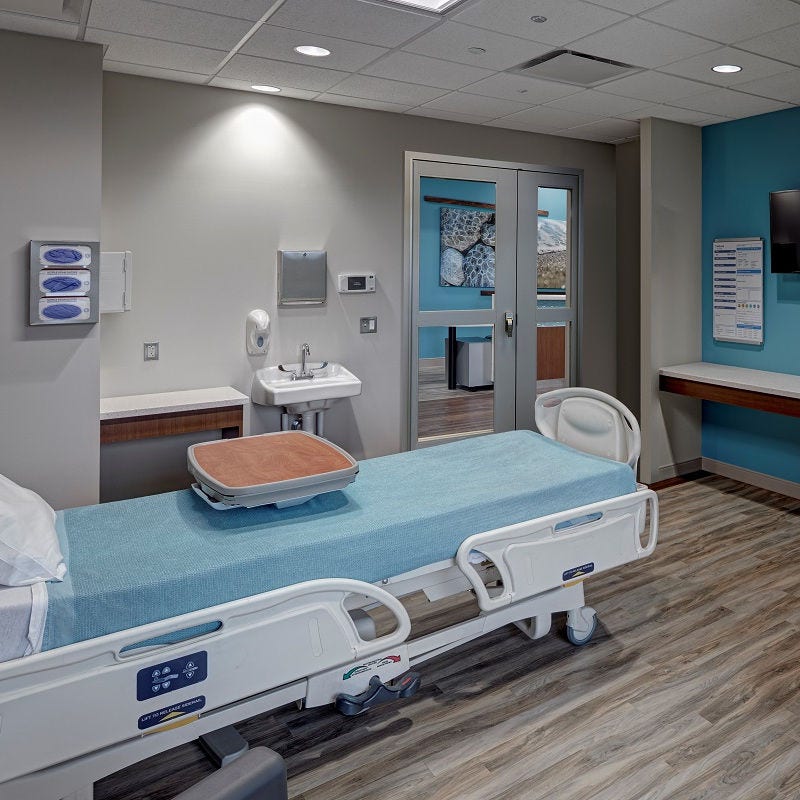

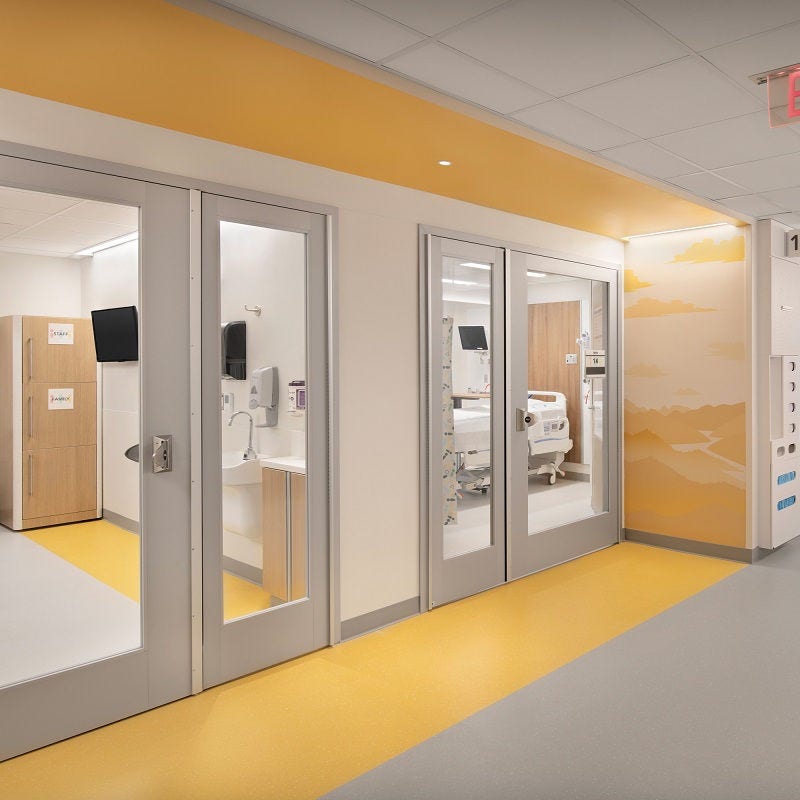

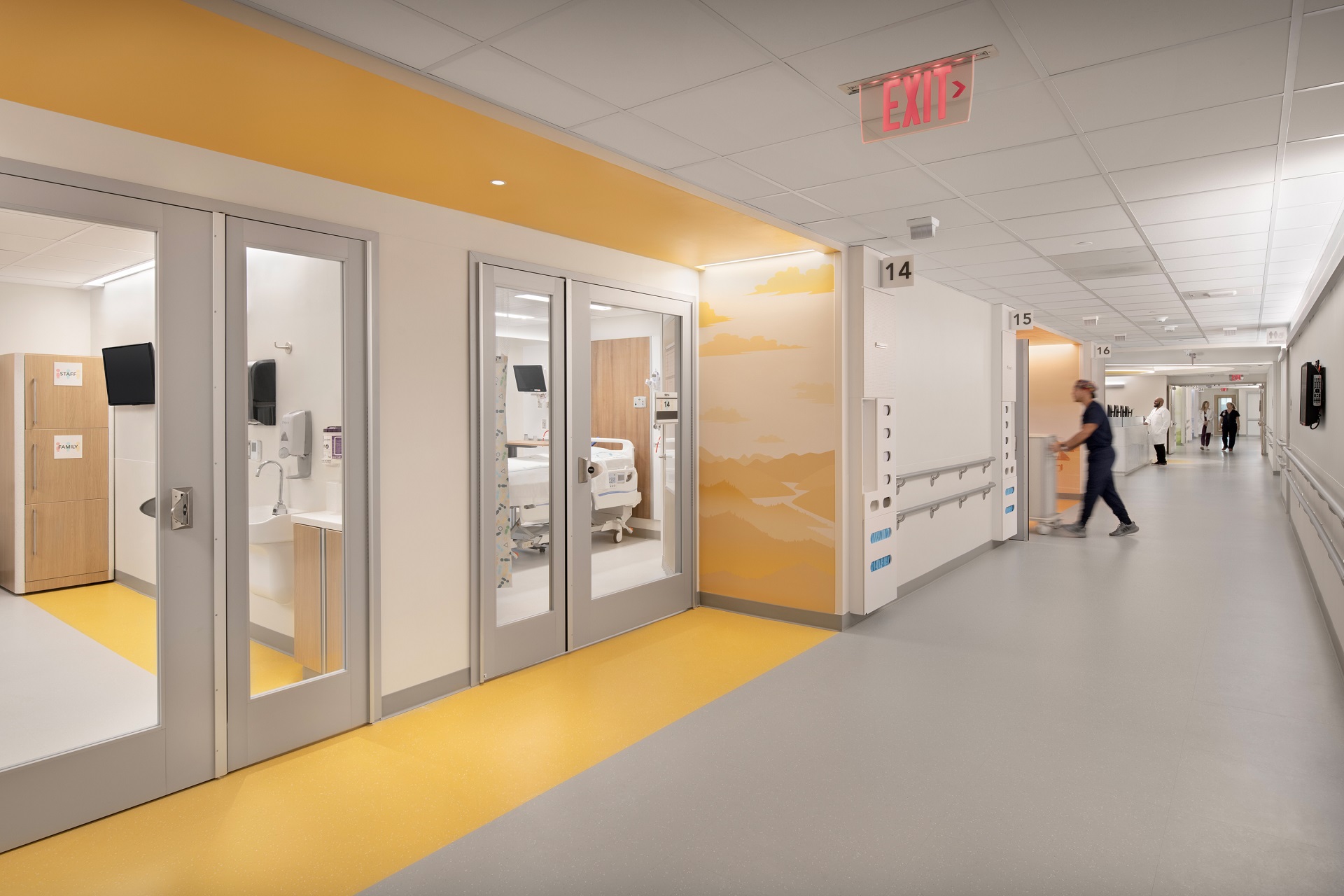

DualSwing™ Swinging Door System

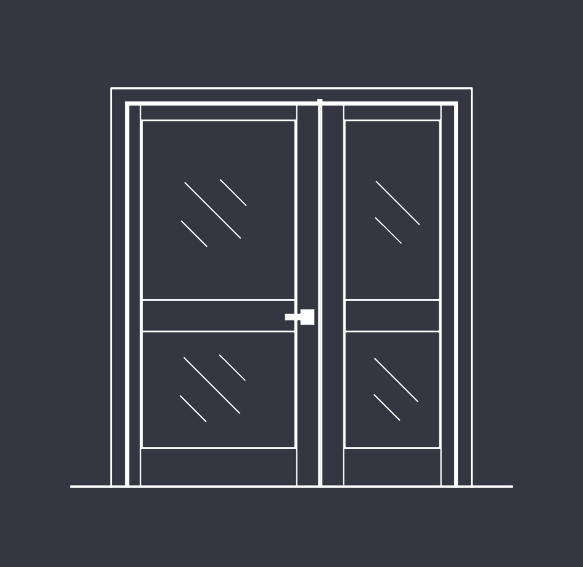

• Flexible width opening featuring two unequal leaf swing doors
• Active/inactive leaf aluminum stile and rail doors are available in multiple sizes and configurations
• Tested to UL 1784 – Standard Air Leakage Tests for Door Assemblies
• Standard finish meets AAMA 2604 Test Standard for Powder Coating for durability
• Easy to clean and robust aluminum frame system wraps and protects wall construction
• ADA-compliant operation
• Clear opening sizes (with auxiliary leaf open) up to 79-5/8”
• System ships knocked down and ready to install into rough opening including:
• Wrapped perimeter frame system
• Full lite aluminum doors with 3-1/2” stiles and 1/2” glass stop
• Midrail available with 7-1/4” wide stile
• 10” bottom rail
• Smoke seals, gasketing, astragals, sweeps
• Allegion Hardware

• Integral blinds
• Enhanced Allegion hardware
• Custom colors
• Midrail with 7-1/4” wide stile

• The active/inactive leaf aluminum stile and rail doors are available in multiple sizes and configurations.

• Clear, frosted, colored or decorative glass up to 1” in overall thickness
• Markerboard glazing, switchable privacy glass, integral blinds or louvers
• Glass with specialty applied films or graphics
• Resins or other solid surface materials as appropriate for application

• Flush Wood – A range of standard and custom finish options, veneers and species available. Click for a partial listing of options.
• Plastic Laminates – Durable, beautiful options by Wilsonart, Formica, Nevamar, Pionite and Acrovyn and others.
• Aluminum Stile & Rail – Sleek aluminum profiles in standard silver or custom color finishes.
• Specialty Doors – Lead lined, hollow metal steel, or other options possible.
• Visit our Product Builder to see some of our most popular make-ups for yourself.

• Flush wood door
• Flush laminate door
• Wood stile and rail door with glass vision lite
• Glass units with integral blinds or louvers
• Lead shielding doors and glazing for X-Ray rooms

AD Systems proudly offers ADA compliant hardware solutions to add functionality and security to your next project. Download the full hardware selection guide for more information.

• AD Systems Self Latching Passage Lever Lock
• Ives Hinges and Flush Bolt (inactive leaf)
• Optional LCN 4040 Closer or Glynn Johnson Door Stop
• Optional Ives Continuous Hinges (non-smoke rated only)
• Optional Schlage HL 6 Paddle Push/Pull
